springboot03：自定义AutoConfiguration

springboot

Spring

发布日期: 2022-07-20

文章字数: 778

阅读次数:

springboot03：自定义AutoConfiguration

在看完自动装配的原理后，今天来div一个AutoConfiguration的过程，巩固一下学到的知识。

步骤

1.建立自定义starter的package

2.通过maven把自定义starter引入

3.通过ApplicationContext容器使用

建立自定义starter的package

通过空maven新建一个starter模块，编写pom.xml文件

<!-- 产出是jar包  -->
<packaging>jar</packaging>
<!-- name;description -->
<name>MySpringBootStarter</name>
<description>Starter</description>

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>11</java.version>
    <!--target 和 source是必须要设定的，并且需要和java.version一致,否则会有编译错误-->
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <maven.compiler.target>${java.version}</maven.compiler.target>
</properties>

<dependencies>
    <!--如果需要一个有starter的项目，有三个jar包是必须要引入的-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot</artifactId>
        <version>2.7.1</version>
        <scope>compile</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-autoconfigure</artifactId>
        <version>2.7.1</version>
        <scope>compile</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-autoconfigure-processor</artifactId>
        <version>2.7.1</version>
        <scope>compile</scope>
    </dependency>
</dependencies>

建立三个类

xxxProperties 配置类

@ConfigurationProperties(prefix = "myservice")
public class MyServiceProperties {
    // 如果application.yaml中没有配置，需要自动配置缺省值
    private static final String MSG="aaaa";
    private String msg = MSG;

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }
}

xxxAutoConfiguration 自动装配类

@Configuration
@EnableConfigurationProperties({MyServiceProperties.class})
@ConditionalOnClass({MyService.class})
@ConditionalOnProperty(prefix = "myservice", value = "msg", matchIfMissing = true)
public class MyServiceAutoConfiguration {

    // 自动注入MyServiceProperties
    @Autowired
    private MyServiceProperties myServiceProperties;

    // 初始化MyService，并且放入容器
    @Bean
    @ConditionalOnClass(MyService.class)
    public MyService myService(){
        MyService myService = new MyService();
        // 从Properties文件中注入msg
        myService.setMsg(myServiceProperties.getMsg());
        return myService;
    }

}

xxx service类

public class MyService {

    private String msg;

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public String doSomething(){
        return "Hello! " + this.msg;
    }

}

在resources文件夹下新建一个META-INF文件夹，新建spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
cn.silvercorridors.MyServiceAutoConfiguration

打包(package)

安装到本地仓库(install)

到这里，一个自动装配的架子就初步搭好了

在springboot中实现自动装配

在springboot项目中pom.xml引入刚才创建的自定义starter

<dependency>
    <groupId>cn.silvercorridors</groupId>
    <artifactId>MySpringBootStarter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

yaml配置文件添加配置信息（不设定则为默认值：aaaa）

Myservice:
  msg: abcd

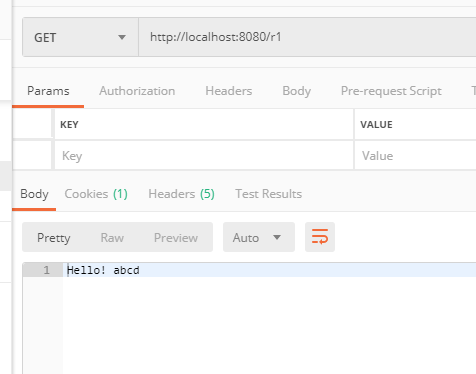

在Controller中调用

@Controller
public class MyController {

    @Autowired
    private MyService myService;

    @RequestMapping("/r1")
    @ResponseBody
    public String r1(){
        return myService.doSomething();
    }
}
